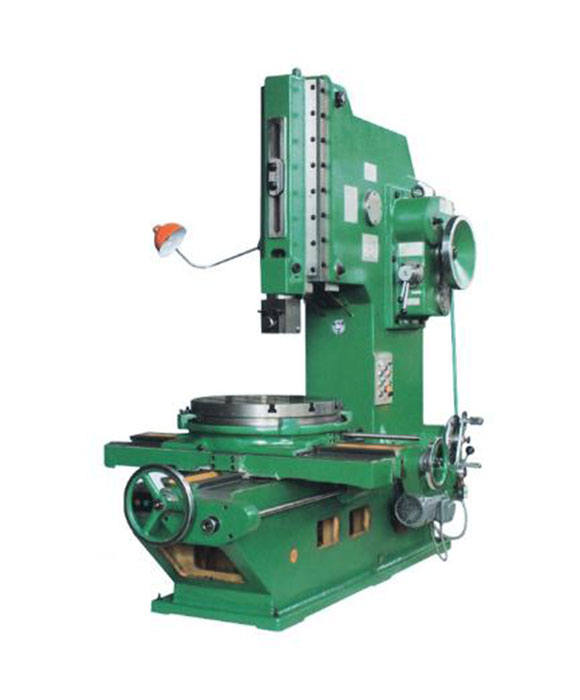

1). Slotting Machine
2). Max. Slotting length 320mm.
3). B5032D with feed motion and rapid travel mechanism

Slotting Machine B5020 Specification:
B5032D is with feed motion and rapid travel

SLOTTING MACHINE FUNCTION:

1. This machine tool is used process plsnes, model surfaces, key seating, etc, and it is suitable for the single-piece or small-batch production.
2. The main transmission mechsnism is used for converting moting of the crank gear in to reciprocating moion of ram. The worktable us designed for ongirudinal, cross and rotary feeding both auytomatically and manually...The feed is stopped automatically. When the worktable is in case of trouble.
3. This machine is designed elaborately with high standardization, uniform ization, systemation and has reasonable arrangement with compact and harmonical construcition, pleasing appearance, conveninent maintenance,
4. The electric epuipment of this machine is suitable for 3-phasesA. C. Power supply of 50 cycles. 380V.
   Maims devices of vollages and or frequencies other than specified above can be suppoied according to the special order of users
5. This machine tool is used process plsnes, model surfaces, key seating, etc, and it is suitable for the single-piece or small-batch production workshop.
6. The main transmission mechsnism is to transmit the throw-over motion of the rock er arm into the to-and-fro motion of the ram the operating plantform can move vertically and horizontally and revolve it is able to achieve autonatic feed and hand operating feed Also it can move fast in case of breakdown, the platform will autobatically stotp feeding and achieve limit safety.
7. When the machine tool is startede, stop using electromagnetic clutch so as to achieve concentration operation operation of the machine tool.
8. Indexing mechanism is used for the graduagionof the throw-over motion of the operating platform parts are processed according to the desired graduation.
9. This machine is carefulluy designed and it is chaeacteristic of standardization, generalization, serialization, high degree automation, also it is of reasonable diatrbutin, compact sructure, well-balanced proportion, good outer looks and convenient maintenance.
10. The lubrication of the machine tool is brought by the oil pump, amd lubrication oil is transmitted to various points by the oil-transmitting rubes wth convenient adiustment.
11. The electric equipment of the machine tool is fixed in the bed at the back part of the lower bed it is safe and reliable because there are cimcentrated push buttons in the upper bed.
12. As for other power source conditions raised by the customer. Special orders of goods supply can be effected through negoti-ation
