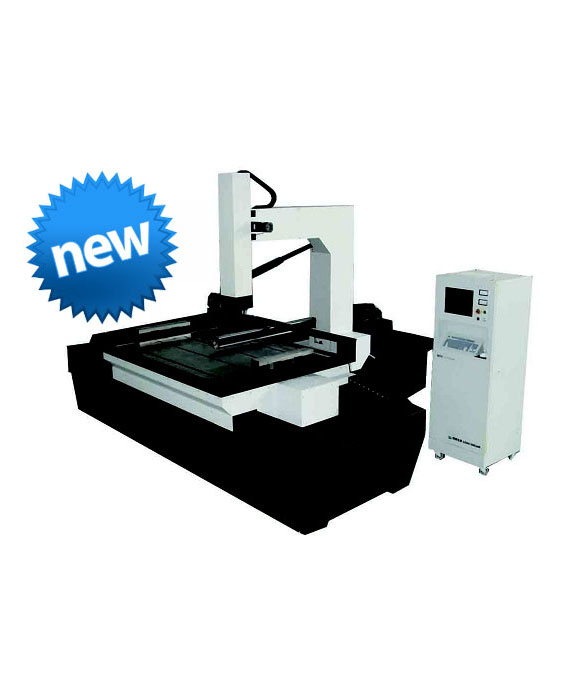

Machine model: HA1600
1. Multi-cutting function
2. Best roughness Ra<1.0um
3. Max.cutting speed hit 200mm²/min
4. With advanced and particular pluse power, gets lower loss.The diameter of wire wore 0.005mm in 200000mm² cutting.
5. Professional high-quality industry computer and international brand parts makes the products good performance.
6. X/Y adopt Japanese Mitsubishi AC servo driver and motor,which have stable and reliable performance
7. High precision ball screw and linear guide-way improve the positioning precision of the machine tool and realize the function of pitch compensation
8. High-strength resin castings ensure the machine body having enough rigidity and strength
9. Handy control

Machine type	:	HA800U
Worktable travel  (L×W)	:	1880× 1300mm
Table travel(X× Y)	:	1200× 1600mm
Max.workpiece thickness	:	600mm
Max taper angle/height	:	±3°/50mm
Max.part weight	:	5000kg
Max.machining speed	:	200 mm²/min
Diameter of wire	:	0.13~0.25mm
Best roughness	:	Ra >1.0 µm
Machine tool dimensions (W×D×H)	:	4100mm × 3845mm × 2250mm
Machine weight	:	8000kg
