Product Feature
1. FullClosed-loop Control
Imports linear grating and ball-screw, linear guide-way of THK guaranteeing high precision for a long time

2. LRT1 Intelligent power
LRT1 Intelligent power can get high roughness as well as high productivity

3. Convenient Operation
Operations panel and interface of ergonomic design, Windows XP and touchingscreen, operates conveniently, learns easily

Main Configurations

• European FAGOR linear grating
• Japanese THK ball-screw and linear guide-way
• Grundfos pumps
• Japanese Mitsubishi AC Servo system
• Japanese inverter
• Windows XPE
• Touching screen, mouse

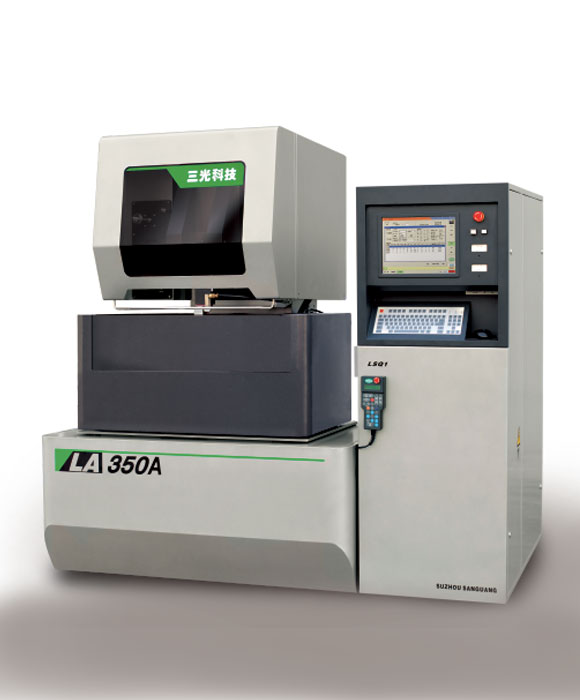

Machine type	:	LA350
Worktable dimension L x W	:	600x400mm
Worktable travel (X x Y)	:	350x250mm
Travel (Z)	:	220mm
Max.workpiece thickness	:	210mm/130mm
Max.part weight	:	350Kg/170Kg
Max taper angle/height	:	±15°/100mm
Max.machining speed	:	>300 mm²/min
Machining method	:	Flushing
Diameter of wire	:	0.15 ~ 0.3mm
Machine tool dimensions (WxDxH)	:	2450×2500mm
Machine weight	:	2000kg
