Product Feature

1. FullClosed-loop Control

Imports linear grating and ball-screw, linear guide-way of THK guaranteeing high precision for a long time



2. LRT1 Intelligent power

LRT1 Intelligent power can get high roughness as well as high productivity



3. Convenient Operation

Operations panel and interface of ergonomic design, Windows XP and touchingscreen, operates conveniently, learns easily

Main Configurations

• Imports European linear grating
• Japanese THK ball-screw and linear guide-way
• Grundfos pumps
• Japanese AC Servo system
• Imported inverter
• Windows XP
• Touching screen, mouse

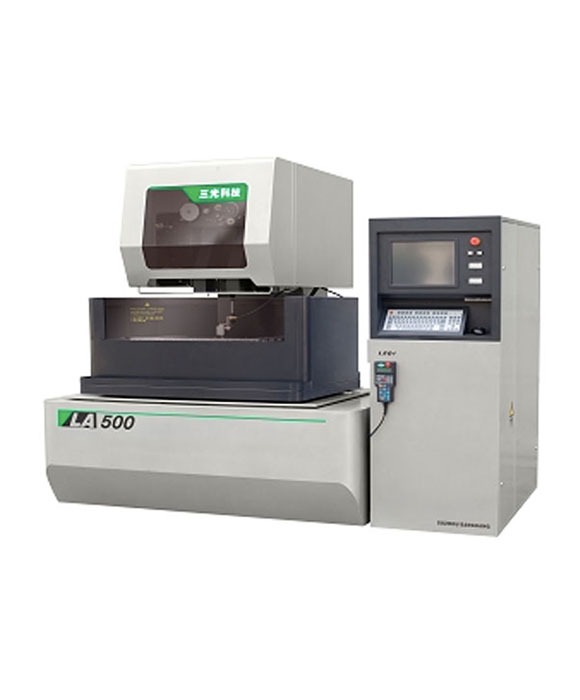

Machine type	:	LA500
Worktable travel (X×Y)	:	500×350mm
Travel (Z)	:	270mm
Max.workpiece thickness	:	260mm
Max.part weight	:	700KG
Max taper angle/height	:	±15°/100mm
Max.machining speed	:	>210 mm²/min
Machining method	:	Flushing
Diameter of wire	:	0.15 ~ 0.3mm
Machine tool dimensions (W×D×H)	:	2420×2500×2150mm
Machine weight	:	2640kg
